【Introduction】:A multi frequency dewatering screen with large capacity and full dehydration
【Capacity】: ≤250t/h
【Improvement】: The efficient multi frequency dewatering screen adoptsscreen side opening holes, and the water flows out from the hole quickly accelerating the dewatering speed, in addition, it avoids the damage due to water splashed onto the motor.

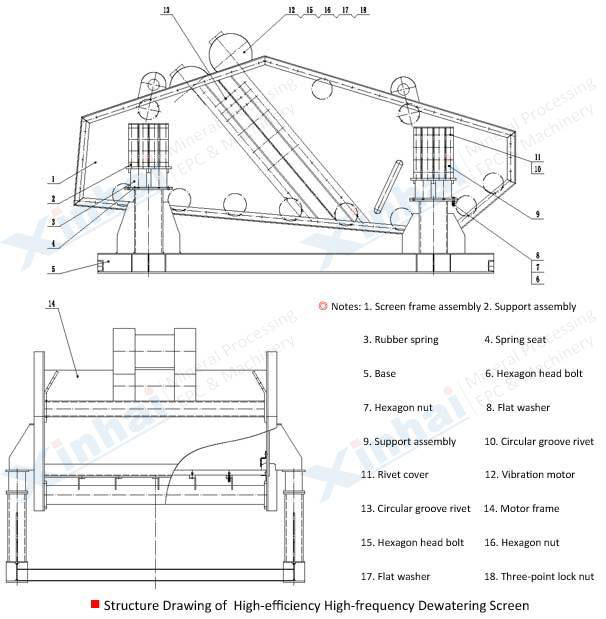

Xinhai Company has many special technical designs in dewatering screen. The main deck of the screen slopes upwards and forms a 45° sloping with the back-deck section. Two vibration motors are installed horizontally. One is installed on the top of the other one. Unbalanced gravity produces rotary effect makes the screen work stably.
Double vibration motor excitation, firm and compact structure, getting rid of thedefectsof traditional eccentric vibrator such as large structure, oil leakage, large wear, large noise, inconvenient repair, etc.
Xinhai wear-resistant rubber lined on the side guard plate of Xinhai dewatering screen protects it from wearing and reduces the pollution of iron.
Xinhai mine dewatering screen uses the Xinhai embedded wear-resistant urethane mesh, its life is 3-10 times longer than the traditional metal mesh’s, and it avoids direct collision of metal frame and ore.
Vibration damper for dewatering screen is used Xinhai rubber damper column, which is more suitable for wet conditions, and is durable.
The product adopts double vibration motor as power supply: The two motors that rotate synchronously and reversely and centrifugal force is produced by two groups of eccentric block. This makes the screen body periodical to-and-fro moving along the direction of straight line, which is for the purpose of dehydration. The screen frame is connected by the high-intensity bolts, so the structure is stable and durable.
| Model | Min. 30% Solid Feeding Slurry Concentration by Volume | Unit Motor Power (kW) X Quantity (set) | ||||||
| Coal Fine Theoretically -0.5+0.1(mm) Specific Gravity 1.5 | Coarse Sand Approxilly- 5(mm) 100%, -0.6(mm)50%, Specific Gravity 2.7 | Fine Sand 90% -1(mm) Specific Gravity 2.7 | 980 (r/min) | 1460 (r/min) | ||||
| 1460 (r/min) | 980 (r/min) | 1460 (r/min) | 980 (r/min) | 1460 (r/min) | 980 (r/min) | |||
| VD6 | 6~8 | 10 ~13 | 14 | 28 | 10 | 21 | 2 X2 | |
| VD9 | 9~12 | 15 ~20 | 21 | 42 | 16 | 32 | 3X2 | |
| VD12 | 15 ~19 | 24 ~30 | 33 | 67 | 25 | 50 | 2.6X2 | 4X2 |
| VD15 | 30 ~35 | 50 ~60 | 63 | 125 | 47 | 94 | 2.4X4 | 2.25X4 |
| VD18 | 35~45 | 60 ~80 | 77 | 153 | 57 | 115 | 3.7X4 | |
| VD21 | — | 85~100 | — | 225 | — | 164 | 15 | — |
| VD24 | 95~110 | 250 | 190 | |||||
A gold concentrator in northeast of China, the capacity is large. In order to save money and multi-usage, the client chose Xinhai high frequency dewatering screen. According to customer requirements, technical personnel applied double motor synchronous technology, universal type eccentric block, adjustable amplitude vibration device to improve the dewatering screen, which reduces the damage of motor, and saves money. Compared with previous dewatering screen in operation process, the screen life extended nearly doubled, customers were very satisfied with this result, and reached a long-term cooperation relationship with us.
